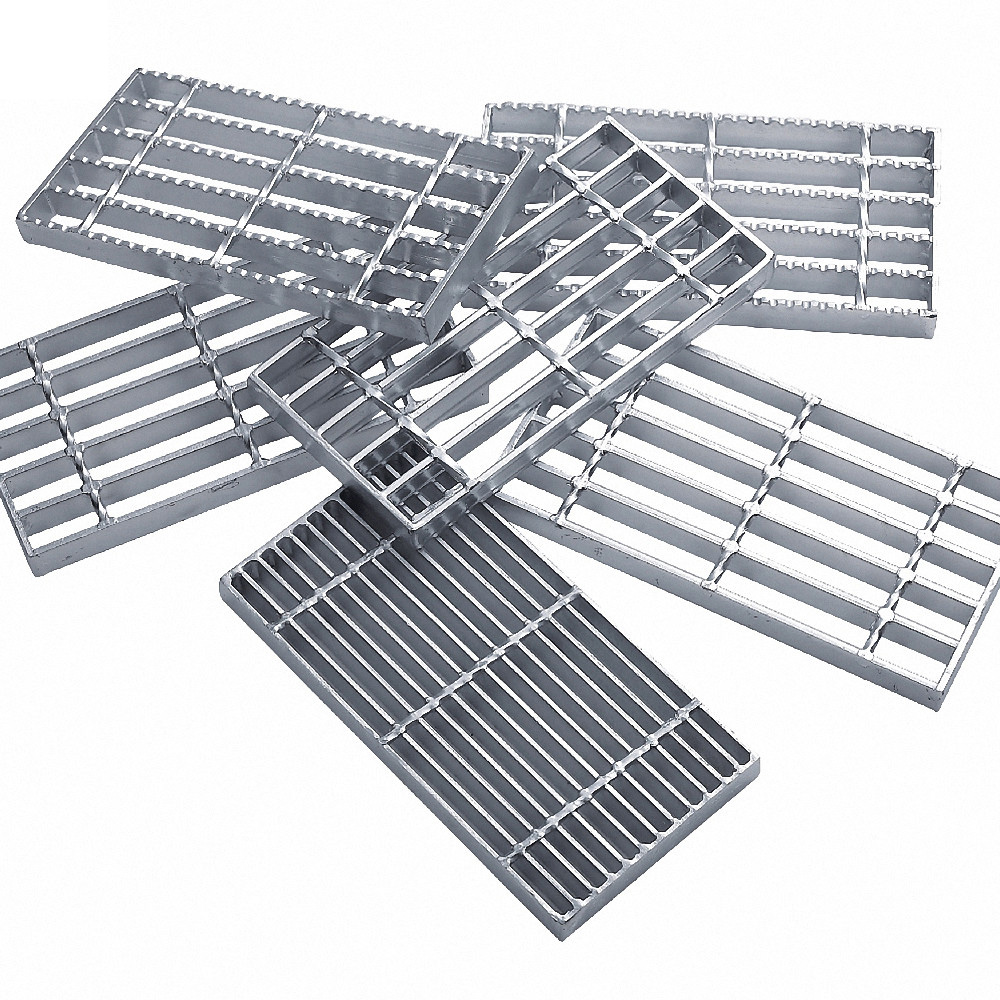

Steel Grating

Wire Diameter: 4.0mm 5.0mm 6.0mm 7.0mm 8.0mm

Cross bar pitch:50,100mm

Customise acceptable

Free sample

Product description: We produce three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms,

Steel Grating
1.Material:mild steel or stainless steel

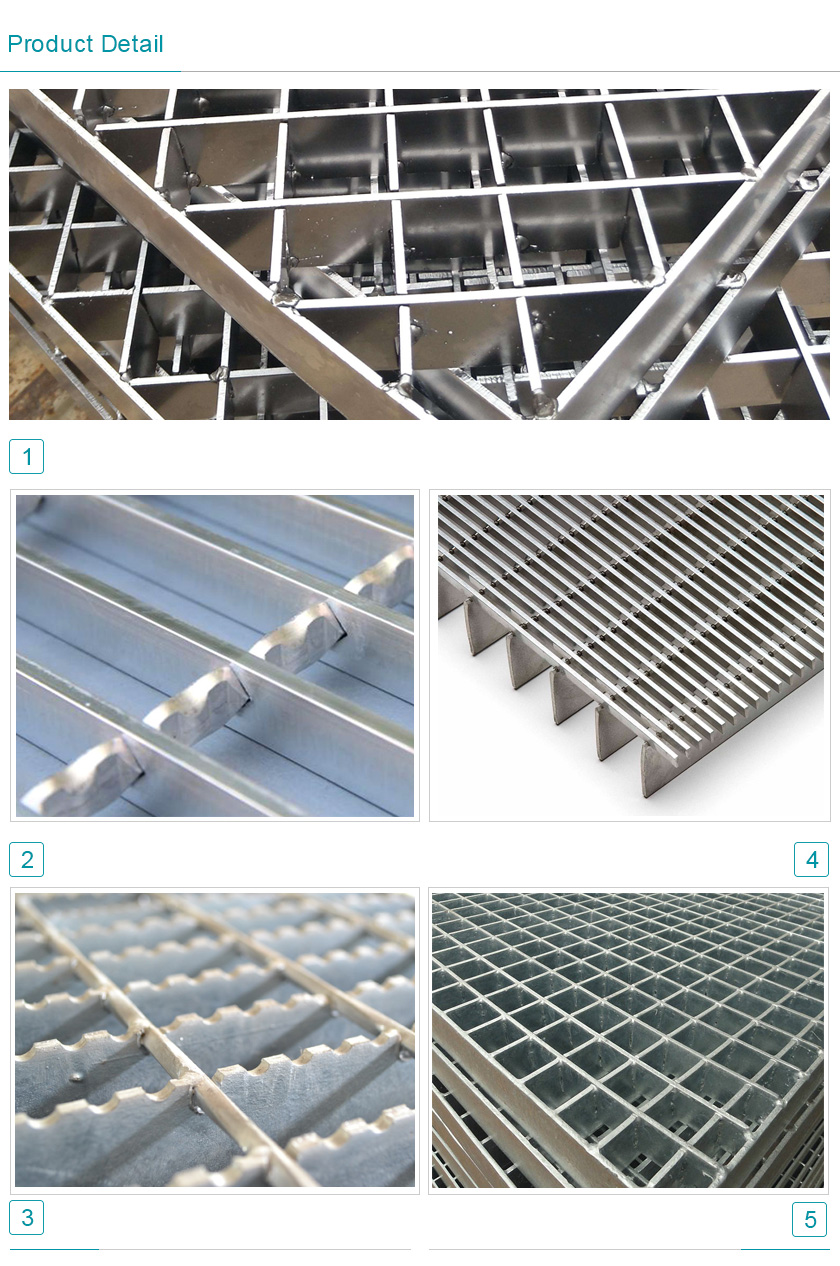

2.Types of steel grating: We produce three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc.
3.Usage: They are widely used in municipal engineer walkways,shools,residential quarters,garden facilities,stadium,port,industry,oil and chemistry projects etc .
4.Surface:Untreated, painting or hot dipped galvanizing
5.Specification of steel grating

No	Item	Description
1	Bearing bar	25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2	Bearing bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3	Cross bar pitch	38,50,76,100,101.6mm
4	Material	Q235,A36,SS304
5	Surface treatment	Black, hot dipped galvanized, paint
6	Thickness	Thickness≥3mm, depth ≥19mm
7	Standard	China: YB/T 4001.1-2007
		USA: ANSI/NAAMM(MBG531-88)
		UK: BS4592-1987
		Australia: AS1657-1985
