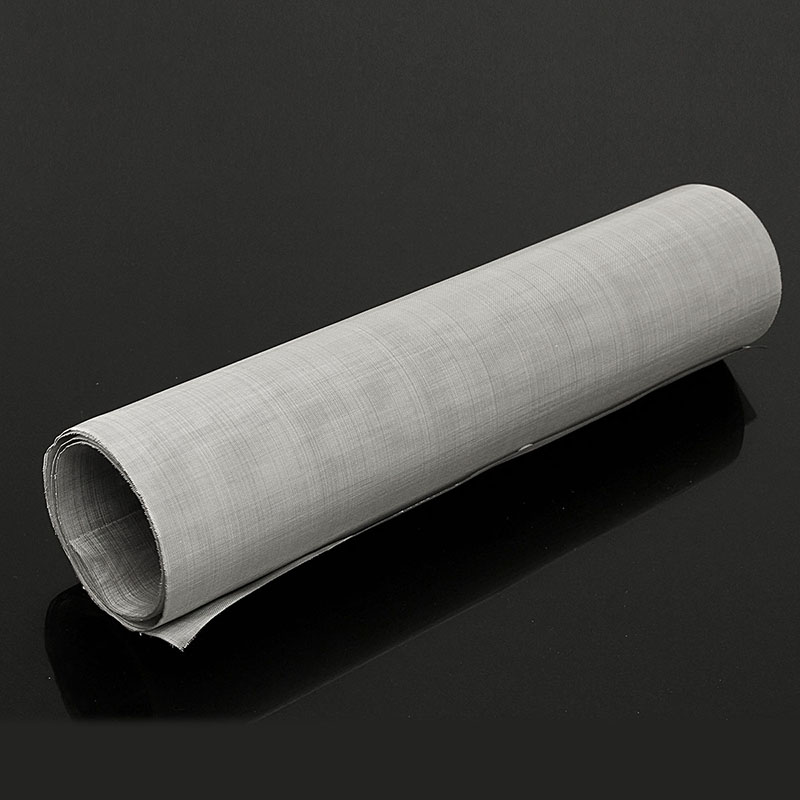

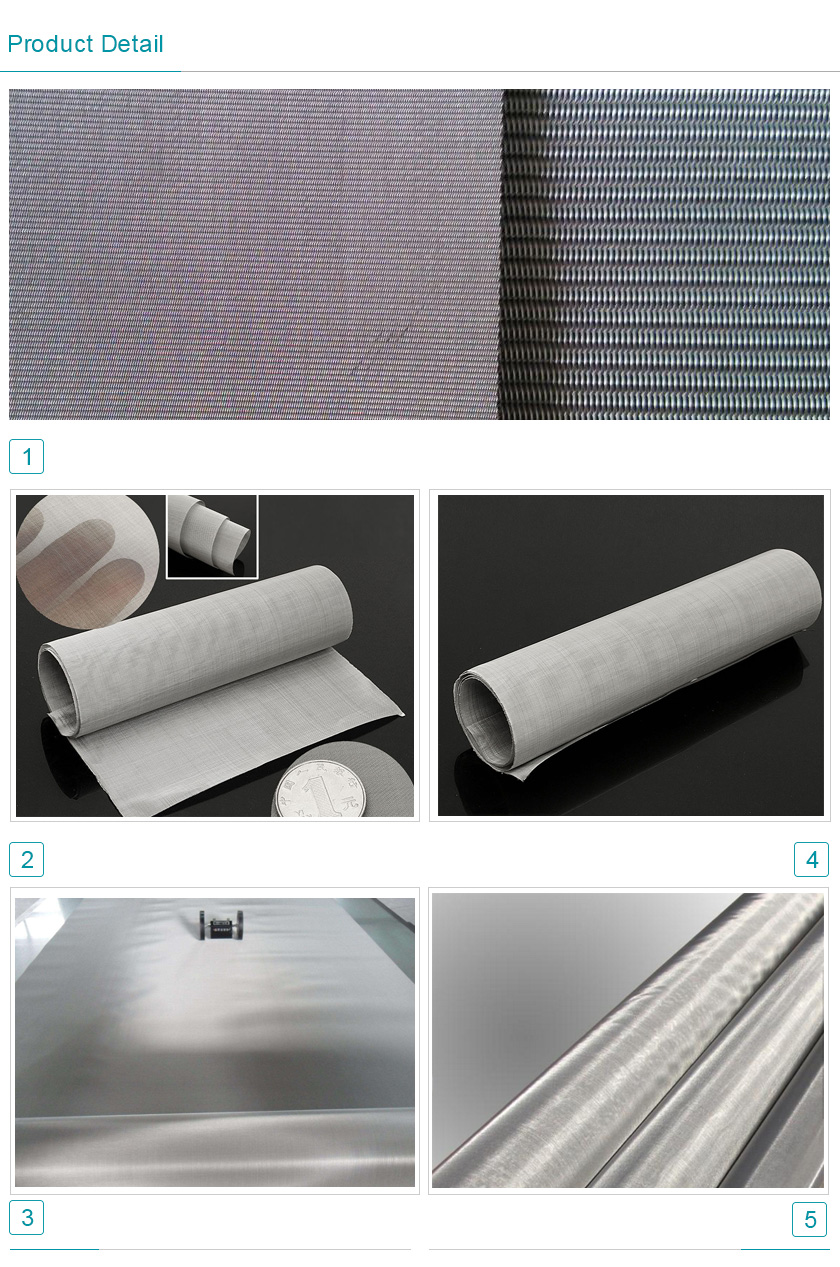

Stainless Steel Wire Mesh Dutch Weave

Material: SUS302, 304,304 L, 316 316L.

Performance: 1. excellent acid resistance 2. alkaline resistance 3. heat resistance 4. high tensile strength 5. good anti rust property

Weaving: Dutch weave.

Use: mainly used in gas, liquid filtration and other media separation;

Product description: As screening and filtering materials in oil industry, chemical industry, electronics, grain, rubber and other industries.

stainless steel weaving wire mesh Dutch weave
mesh/inch (Warp x Weft)	Wire Diameter (Warp x Weft)
mesh/inch (Warp x Weft)	mm	inch
8 x 62	0.63 x 0.45	0.0248 x 0.0177
10 x 79	0.5 x 0.355	0.0197 x 0.0140
12 x 64	0.58 x 0.4	0.0228 x 0.0157
14 x 88	0.4 x 0.3	0.0157 x 0.0118
19 x 140	0.315 x 0.2	0.0124 x 0.0079
20 x300	0.35 x 0.2	0.0138 x 0.0079
24 x 110	0.355 x 0.25	0.0140 x 0.0098
25 x 140	0.28 x 0.2	0.0110 x 0.0079
30 x 150	0.25 x 0.18	0.0098 x 0.0071
35 x 175	0.224 x 0.16	0.0088 x 0.0063
40 x 200	0.2 x 0.14	0.0079 x 0.0055
45 x 250	0.16 x 0.112	0.0063 x 0.0044
50 x 250	0.14 x 0.11	0.0055 x 0.0043
55.5 x 280	0.14 x 0.1	0.0055 x 0.0039
65 x 330	0.11 x 0.08	0.0043 x 0.0031
70 x 350	0.11 x 0.08	0.0043 x 0.0031
70 x 385	0.11 x 0.07	0.0043 x 0.0028
78 x 700	0.11 x 0.08	0.0043 x 0.0031
80 x 400	0.1 x 0.065	0.0039 x 0.0026
80 x 600	0.1 x 0.06	0.0039 x 0.0024
80 x 800	0.15 x 0.04	0.0059 x 0.0016
81 x 780	0.1 x 0.07	0.0039 x 0.0028
90 x 550	0.12 x 0.05	0.0047 x 0.0020
100 x 800	0.08 x 0.04	0.0031 x 0.0016
120 x 1100	0.07 x 0.04	0.0028 x 0.0016
165 x 1400	0.07 x 0.04	0.0028 x 0.0016
200 x 1400	0.07 x 0.04	0.0028 x 0.0016
200 x 1800	0.05 x 0.031	0.0020 x 0.0012
250 x 2000	0.05 x 0.03	0.0020 x 0.0012
325 x 2300	0.035 x 0.025	0.0014 x 0.0010
400 x 2800	0.03 x 0.02	0.0012 x 0.0008
