Expanded Metal Mesh

Expanded metal Mesh


Thickness: 0.2-3.0mm


Wire Diameter:0.15-10mm

Customise acceptable

Free sample

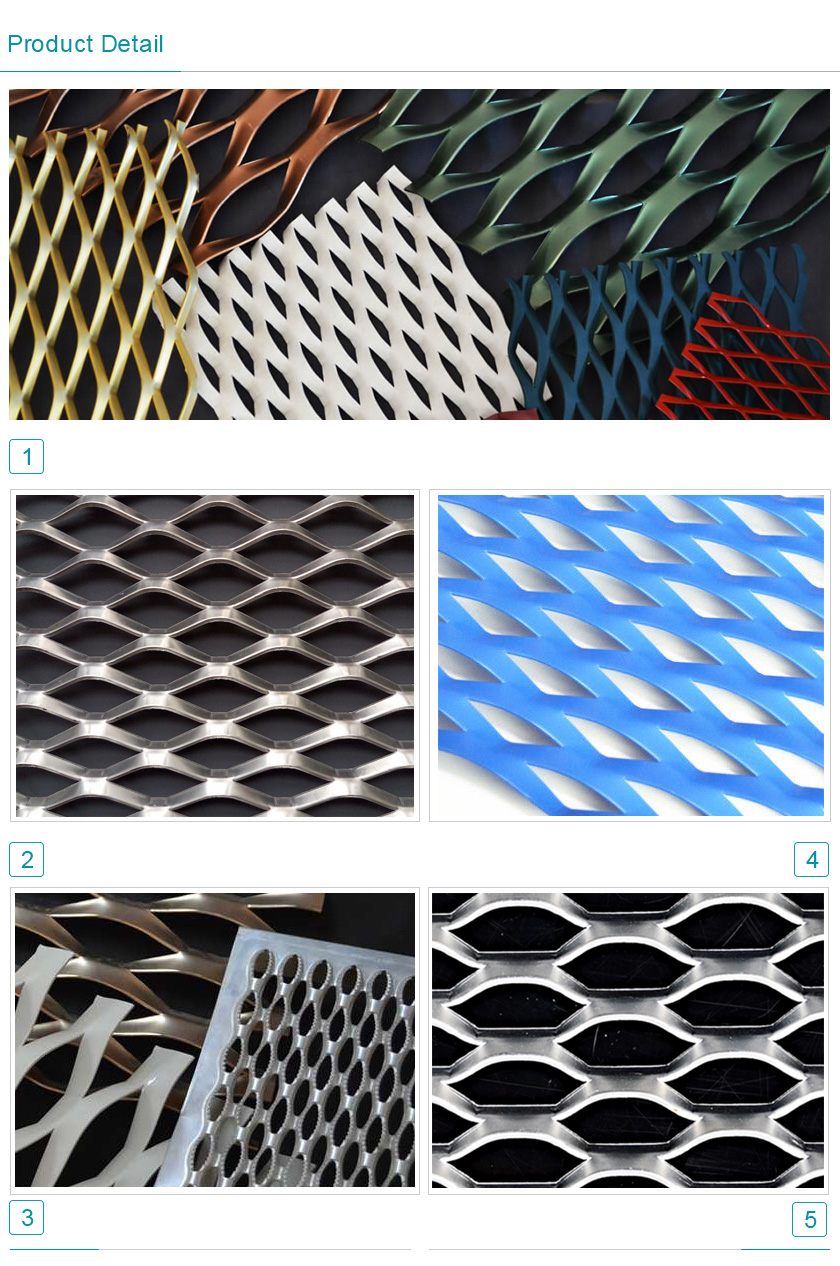

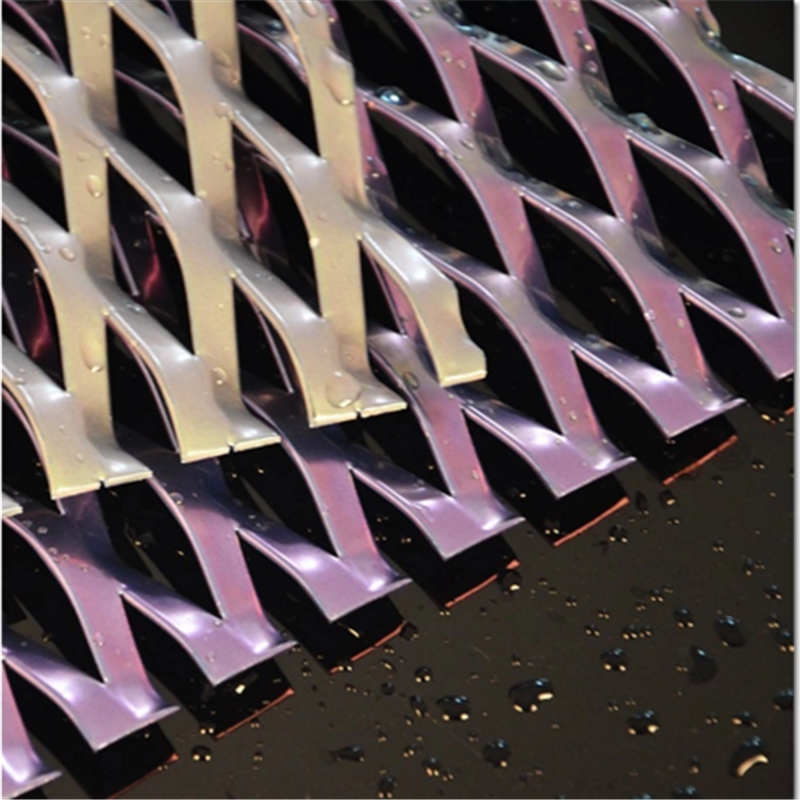

Product description: Expanded metal mesh

Expanded Metal made from a sheet of metal sheet uniformly slit and stretched, forming diamond-shaped or other shape openings in the sheet or rolls.
Expanded is a one piece construction that won’t unravel and under normal circumstances and will hold its shape for many years. This opening shape can’t change if by strong touching .The strands and bonds of the diamond-shaped trusses add strength and rigidity.
Material:Stainless steel sheet Galvanized steel sheet Aluminum sheet Iron sheet Other Metals
Long way of mesh(mm):12.5-200
Short way of mesh (mm):5-80
Thickness(mm): 0.5-8
Length(mm):600-4000 width (mm):600-2000
Surface treatment :
Galvanized , PVC coated , powder coated.
Expanded metal is used in:
grates,
in outdoor furniture
fencing,
installation of "heating floor" system;
plastering (metal lath)
It is often used for guarding to prevent contact with hot surfaces or machinery.
Expanded metal is often used for architectural details and finds use in security applications such as in the walls of a Sensitive Compartmented Information Facility because, in heavier grades, it is difficult to breach without heavy cutting equipment or explosives.
Used with concrete in buildings and construction, maintenance of equirpments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Thickness (mm) SWD (mm) LWD (mm) Wire stems width (mm) Width (m) Length (m)
0.5 2.5 4.5 0.5 0.5 1
0.5 10 25 0.5 0.6 2
0.6 10 25 1 0.6 2
0.8 10 25 1 0.6 2
1 10 25 1.1 0.6 2
1 15 40 1.5 2 4
1.2 10 25 1.1 2 4
1.2 15 40 1.5 2 4
1.5 15 40 1.5 1.8 4
1.5 23 60 2.6 2 3.6
2 18 50 2.1 2 4
2 22 60 2.6 2 4
3 40 80 3.8 2 4
4 50 100 4 2 2
4 60 120 4 2 7.5
4 80 180 4 2 10
4 100 200 4 2 12
4.5 50 100 5 2 2.7
5 50 100 5 1.4 2.6
5 75 150 5 2 10
6 50 100 6 2 2.5
8 50 100 8 2 2.1
