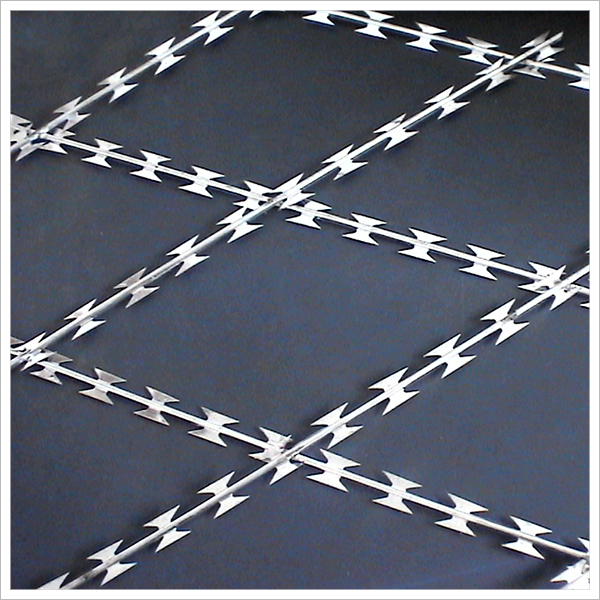

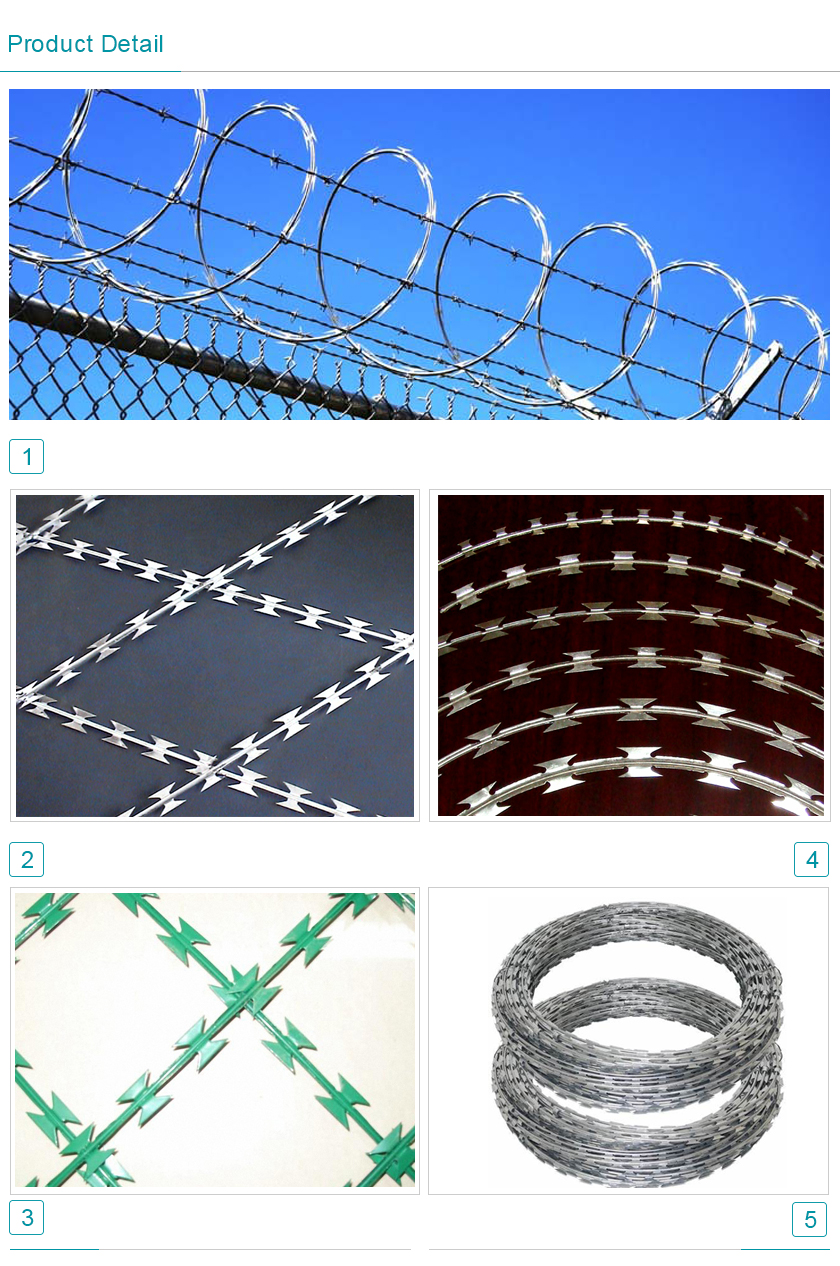

Razor Barbed Wire
Type:Razor Barbed Wire
Wire Dia:0.9mm-3mm
Customise acceptable
Free sample
Product description: razor barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall,
| Outside Diameter | No. of Loops | Standard Length per Coil | Type |
| 450 mm | 33 | 8 M | CBT-65 |
| 500 mm | 41 | 10 M | CBT-65 |
| 700 mm | 41 | 10 M | CBT-65 |
| 960 mm | 53 | 13 M | CBT-65 |
| 500 mm | 102 | 16 M | BTO-10 , 15 ,22 |
| 600 mm | 86 | 14 M | BTO-10,15,22 |
| 700 mm | 72 | 12 M | BTO-10,15,22 |
| 800 mm | 64 | 10 M | BTO-10,15,22 |
| 960 mm | 52 | 9 M | BTO-10,15,22 |
| Reference Type Number | Thickness | Wire Dia. | Barb Length | Barb width | Barb spacing |
| BTO-10 | 0.5 ± 0.05 | 2.5 ± 0.1 | 10 ± 1 | 13 ± 1 | 25 ± 1 |
| BTO-12 | 0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 25 ± 1 |
| BTO-18 | 0.5 ± 0.05 | 2.5 ± 0.1 | 18 ± 1 | 15 ± 1 | 35 ± 1 |
| BTO-22 | 0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 36 ± 1 |
| BTO-28 | 0.5 ± 0.05 | 2.5 | 28 | 15 | 46 ± 1 |
| BTO-30 | 0.5 ± 0.05 | 2.5 | 30 | 18 | 46 ± 1 |
| CBT-65 | 0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 1 | 21 ± 1 | 101 ± 2 |
